UTL

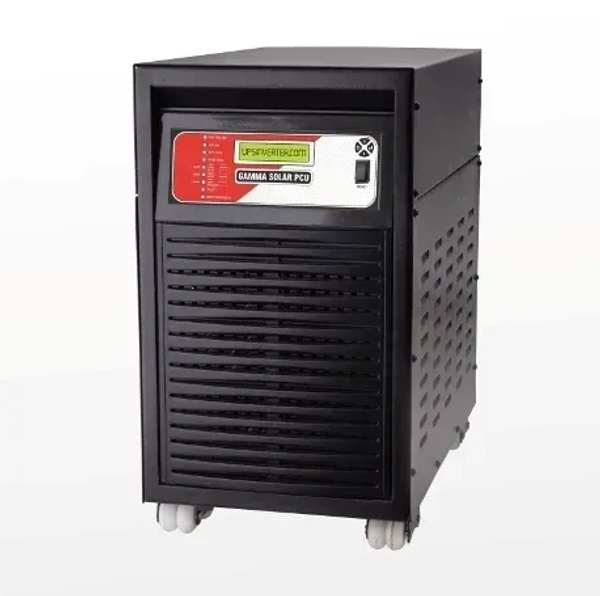

Gamma Solar PCU
₹ 34,009 / Number
You will earn 340 points from this product
| Solar PCU Capacity | 2KVA 48V |
| Input Voltage Range (min-max) | 80-230 VDC |
| Maximum PV Power Recommended | 2KW |
| Types of Charger | PWM with MPPT |
| Charge Controller Peak Efficiency | 95% |
| Battery Low Buzzer | 10.2V |
| Battery Low Cut | 10.0V |
| Battery High Cut | 15.5V |
| Battery Charging Voltage by SPV | 14.5V |
| Battery Charging Current by SPV | 18A |
| Battery Charging Voltage by GRID | 14.2V |
| Battery Charging Current by GRID | 10A |
| Grid Low Cut Voltage ( IT Load Disable/Enable) | 120/175V |
| Grid High Cut Voltage ( IT Load Disable/Enable) | 280/255V |
| Inverter Nominal Output Voltage | 230VAC |
| Output Supply Phase | 1 phase, 3 wire |
| Output Waveform | Sine wave |
| Nominal Frequency | 50.0 HZ |
| Load Current | 6.1 A |
| Inverter Peak Efficiency | >88% |
| Protections | Overload, Battery low, Battery high, Output low, Output high, Output Short Circuit, Overheat, Under Frequency, Over Frequency, Solar panel reverse |
| Display Parameters | Battery Voltage, Charging Current, Discharging Current* Solar Voltage, Solar Current, Instantaneous Power, Grid Voltage, I/P Frequency Output Voltage, Output Load% O/P Frequency Grid, Inverter & SPV Charger Status |
| Switches | Reset for System ON/OFF, up, Down, Back, Enter (for LCD Configuration) |
| Indications | System ON, Inv. ON, SPV Charging, Grid Charging, Battery Low/High, Overload, Overheat, Mains Low, Mains High, Under frequency, Over frequency, (IT Mode, Grid Charging, NLSD, Boost Charging, DG Mode)Enable/Disable* |
| Max Relative Humidity @25*C (non condensing) | 95% |
| Weight | 27KG |
| Dimension (L X W X H) | 381 X 279 X 355 mm |
