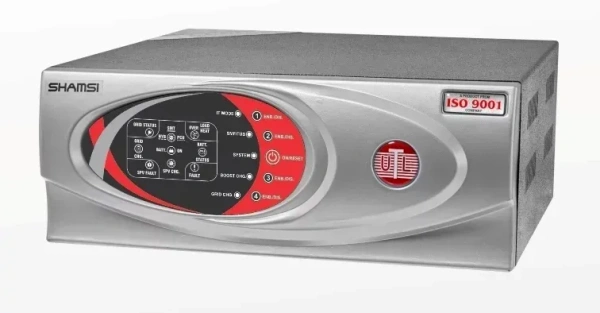

Shamsi Solar Inverter
₹ 6,264 / Number
Highlights
Maintain Battery Health for Longer Life
The Shamsi solar inverter feeds the battery installed to it at a constant boost charging current until its voltage reaches 14.58V and the float current, which maintains the voltage above 13.8V.
Modified Sine Wave Output
A sine wave output is also known as waveform for electronic equipment. The incoming AC line is a sine wave, thus electronic equipment expects to see this type of waveform. A sine wave is the most expensive output form for solar manufacturers to produce due to more complex circuitry and components.
Inbuilt IT Mode
IT loads which provide protections to IT instruments like computers, printers etc. In IT mode the change over time is very less so that there shouldn’t be any kind of breakdown in power supply.
| Model | 675/25A 12V |
| Nominal Grid Voltage | 230V 1Φ |
| Battery Low Buzzer | 10.8V ± 0.2V (Each battery ) |
| Battery Low Cut | 10.5V ± 0.2V (Each battery ) |
| Battery High Cut | 17V ± 0.2V (Each battery ) |
| SPV Current | 25A |
| Grid – Battery Charging Voltage (Equalize) | After 30 Days |
| Grid – Battery Charging Current | 10A/12.5A ± 2A |
| Grid Reconnect @ Battery Voltage | 11.8V ± 0.2V (Each battery ) |
| Output Phase | 1 Phase, 3Wire |
| Nominal Output Voltage | 240V ± 10% RMS |
| Nominal Frequency | 50Hz±1% |
| Output Waveform | Modified Sinewave |
| Typical Efficiency | ≥82% |
| Protection | Overload, Battery Low, Battery High, Output Short Ckt, Battery Reverse (Fuse Blown), Over Heat @90*C ± 10*C , SPV High , I/P HV, I/P LV |
| LED Indication | System ON, (IT mode, SMF/TUB, Boost Chg, Grid Chg.)Enable/Disable, Mains Status, Overload, Grid chg., Inverter ON, Battery Status, SPV Chg., Fault |
| Switches | System ON, (IT Mode, SMF/TUB, Boost Chg, Grid Chg.) Enable/Disable |
| Type of Charger | PWM |
| Efficiency | >95% |
| Input Voltage Range (Min – Max)Voc | 17V-25V |
| Maximum PV Power Recommended | (150W/160W)X2 (Parallel) |
| Operating Temperature | 0-50°C |
